(1)Ordering Code 产品名称
C5A DR3W 8 X 10 (S)
Material Type OutsideDiameter(A￠) Length(D) Slot
材质 形状 宽度(A￠) 长度(D) 出线槽
C5A DR3W 8 X 10 (S)
Material Type OutsideDiameter(A￠) Length(D) Slot
材质 形状 宽度(A￠) 长度(D) 出线槽
C5A DR3W 8 X 10 (S)
Material Type OutsideDiameter(A￠) Length(D) Slot
材质 形状 宽度(A￠) 长度(D) 出线槽
(2)Suitable Material 適用材質
F4D.C5A.05.C6...

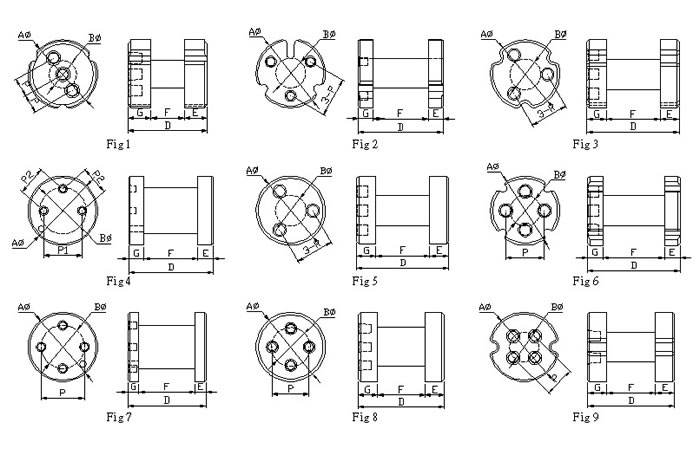

(3)Shape 图形标示
(4) DIMENSIONS (尺寸)
| NO. | CORE | Fig | A∮ | B∮ | D | E | F | G | P |
| 1 | DR3W 4x5.5 | 5 | 4.00±0.20 | 2.00±0.15 | 5.50±0.20 | 1.60±0.15 | 2.30±0.15 | 1.60 | |
| 2 | DR3W 4.5x5.5(S) | 3 | 4.50±0.20 | 2.00±0.15 | 5.50±0.20 | 1.60±0.15 | 2.30±0.15 | 2.00 | |
| 3 | DR3W 4.5x7.2(S) | 1 | 4.50±0.20 | 1.80±0.15 | 7.20±0.20 | 1.50±0.15 | 4.20±0.15 | 1.40 | |
| 4 | DR3W 4.8x5.5(S) | 3 | 4.80±0.20 | 1.90±0.15 | 5.50±0.20 | 1.60±0.15 | 2.30±0.15 | 2.15 | |
| 5 | DR3W 4.8x5.5(S) | 1 | 4.80±0.20 | 1.90±0.15 | 5.50±0.20 | 1.60±0.15 | 2.30±0.15 | 1.30 | |
| 6 | DR3W 5x7 | 5 | 5.00±0.20 | 2.00±0.15 | 7.00±0.20 | 2.00±0.15 | 3.00±0.15 | 2.15 | |
| 7 | DR3W 5x8.5(S) | 3 | 5.00±0.20 | 2.00±0.15 | 8.50±0.30 | 1.80±0.15 | 4.90±0.15 | 2.15 | |
| 8 | ...... | ... | ...... | ...... | ...... | ...... | ...... | ...... | ...... |
| 9 | DR4W 4.5x5(4S) | 6 | 4.50±0.20 | 2.10±0.15 | 5.00±0.20 | 1.40±0.15 | 2.20±0.15 | 2.50 | |
| 10 | DR4W 6x8.3(4S) | 6 | 6.00±0.20 | 2.80±0.15 | 8.30±0.20 | 2.15±0.15 | 4.00±0.15 | 3.0 | |
| 11 | DR4W 6x8.3(2S) | 9 | 6.00±0.20 | 2.80±0.15 | 8.30±0.20 | 2.15±0.15 | 4.00±0.15 | 3.0 | |
| 12 | DR4W 6x8.3 | 8 | 6.00±0.20 | 2.80±0.15 | 8.30±0.20 | 2.15±0.15 | 4.00±0.15 | 3.0 | |
| 13 | DR4W 7.65x11.0(4S) | 6 | 7.65±0.20 | 4.00±0.15 | 11.0±0.30 | 2.50±0.15 | 6.00±0.15 | 4.95 | |
| 14 | ...... | ... | ...... | ...... | ...... | ...... | ...... | ...... | ...... |
| 15 | DR5W 9x12 | 14 | 9.00±0.30 | 4.00±0.15 | 12.0±0.30 | 2.50±0.15 | 7.00±0.15 | 6.00 | |
| 16 | DR5W 14x15 | 15 | 14.0±0.30 | 8.00±0.15 | 15.0±0.30 | 3.00±0.15 | 9.00±0.15 | 10.5 | |
| ... | ...... | ... | ...... | ...... | ...... | ...... | ...... | ...... | ...... |
